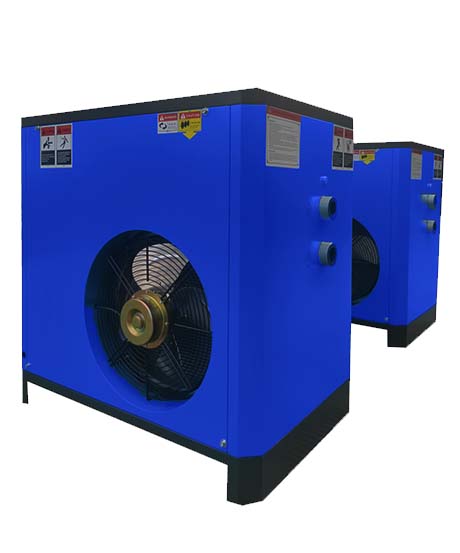

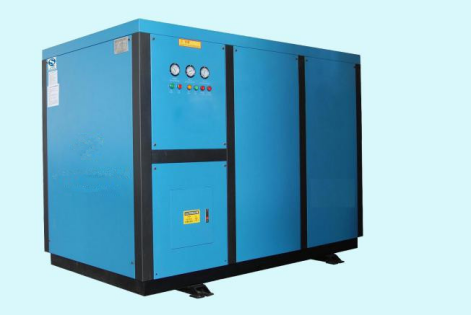

High Inlet Temperature Water Cooled Refrigerated Air Dryer

Refrigerated air dryer is drying through cooling.It cools the compressed air from upstream to certain dew point temperature,condensates most of liquid water with dust and oil,and then drains out of the machine through gas/liquid separator so as to get the dried finished air.

Description
Inquiry

Inlet temperature :≤80℃,

Cooling method: Water-cooled,

Designed dew point: 2~10℃,

Refrigerant: R22,

Inlet pressure: 0.6~1.0MPa,

Pressure drop: ≤0.02MPa,

Cooling water inlet temperature:≤32℃,

Cooling water inlet pressure:0.2~0.4MPa.

model	capacity		voltage(V/Hz)	compressor power(HP)	cooling water circling capacity（Nm³/h)	air connection	cooling water connection	net weight（kg）	dimensions（mm）
model	Nm³/min	scfm	voltage(V/Hz)	compressor power(HP)	cooling water circling capacity（Nm³/h)	air connection	cooling water connection	net weight（kg）	length	width	height
HSD-15HTW	17	600	380V/50HZ	4.0	6.0	DN80	ZG1½"	420	1560	1118	1340
HSD-20HTW	23	800		5.0	7.5			470	1600	1110	1486
HSD-25HTW	27	950		5.5	8.8			590	1805	1110	1510
HSD-30HTW	33	1250		7.5	11.8			680	1950	1283	1700
HSD-40HTW	45	1590		10.0	14.8	DN100		785	2250	1285	1683
HSD-50HTW	55	1940		13.5	17.8	DN125		870	2130	1350	1708
HSD-60HTW	65	2280		15.0	22.2		ZG2"	1100	2310	1430	1708
HSD-80HTW	85	3000		20.0	29.6			1700	2460	1440	1893
HSD-100HTW	100	3500		25.0	37.0	DN150		2480	2860	1620	2000
HSD-120HTW	120	4240		30.0	44.0	DN150	ZG2½”	2520	2960	1620	2030
HSD-150HTW	150	5300		37.5	59.0	DN200	ZG2½”	2800	2960	1620	2050
HSD-200HTW	200	7000		50.0	74.0	DN200	ZG3"	3360	3130	2090	2470
HSD-300HTW	300	10590		80.0	112.5	DN250	ZG3"	3920	3800	2470	2959
