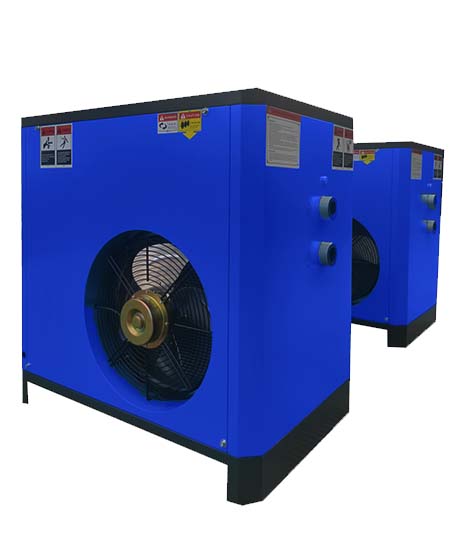

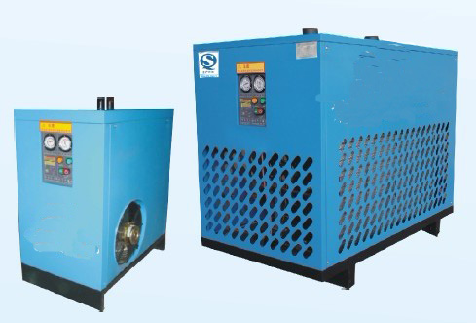

Air-cooling Refrigerated Air Dryer

Refrigerated air dryer is drying through cooling.It cools the compressed air from upstream to certain dew point temperature,condensates most of liquid water with dust and oil,and then drains out of the machine through gas/liquid separator so as to get the dried finished air.

Description
Inquiry

Inlet temperature : ≤45℃,

Cooling method: air-cooled,

Designed dew point: 2~10℃,

Refrigerant: R22,

Inlet pressure: 0.6~1.0MPa,

Pressure drop: ≤0.02MPa.

model	capacity		voltage(V/Hz)	compressor power(HP)	fan power(W)	air connection	net weight（kg）	dimensions（mm）
model	Nm³/min	scfm	voltage(V/Hz)	compressor power(HP)	fan power(W)	air connection	net weight（kg）	length	width	height
HRD-1F	1.5	53	220V/50HZ	1	90	ZG1"	60	630	450	670
HRD-2F	2.6	92		1	120	ZG1"	80	700	450	915
HRD-3F	4	140		1.25	150	ZG1½"	105	850	500	970
HRD-5F	5.2	182		2	195		135	850	500	970
HRD-6F	7	245		2			190	900	560	1070
HRD-8F	8.5	300		2.5			195	900	560	1070
HRD-10F	11	388		3	150X2	ZG2"	225	1180	670	1160
HRD13F	13.8	487		3.6	150X2		260	1180	670	1160
HRD15F	16	560	380V/50HZ	4	180X2		305	1180	670	1160
HRD-20F	20	700		5	195X2	DN80	400	1360	710	1205
HRD-25F	25	875		6	195X2		520	1650	970	1422
HRD-30F	35	1225		7.5	240X2		630	1650	970	1422
HRD-40F	45	1575		10	195X3	DN100	750	1810	1090	1697
