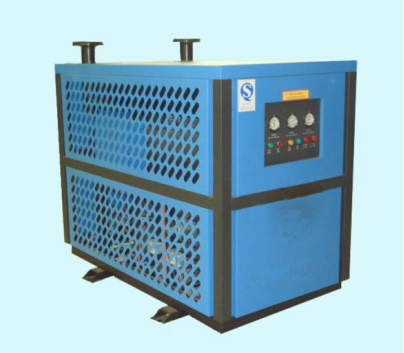

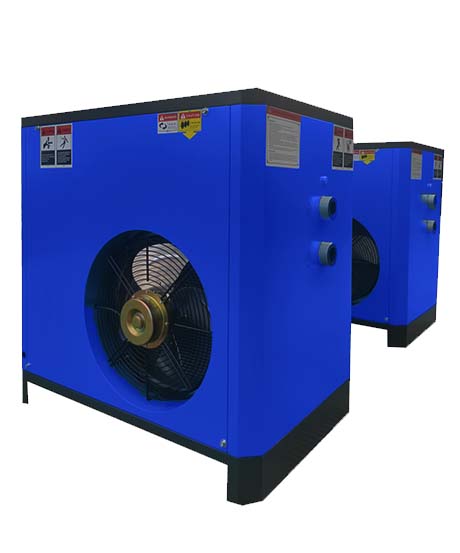

High Inlet Temperature Air Cooled Refrigerated Air Dryer

Refrigerated air dryer is drying through cooling.It cools the compressed air from upstream to certain dew point temperature,condensates most of liquid water with dust and oil,and then drains out of the machine through gas/liquid separator so as to get the dried finished air.

Description
Inquiry

Inlet temperature :≤80℃,

Cooling method: air-cooled,

Designed dew point: 2~10℃,

Refrigerant: R22,

Inlet pressure: 0.6~1.0MPa,

Pressure drop: ≤0.02MPa

model	capacity		voltage (V/Hz)	compressor power(HP)	fan power(W)	air connection	net weight（kg）	dimensions（mm）
model	Nm³/min	scfm	voltage (V/Hz)	compressor power(HP)	fan power(W)	air connection	net weight（kg）	length	width	height
HSD-1HTF	1.2	42	220V/50H	1.0	120	ZG1"	60	680	490	670
HSD-2HTF	2.4	85		1.0	150		90	760	500	870
HSD-3HTF	3.8	132		1.25	90X2	ZG1½"	150	1000	600	910
HSD-6HTF	6.5	230		2.0	150X2	ZG1½"	250	1200	700	1050
HSD-10HTF	10.7	380		3.6	245X2	ZG2"	340	1400	800	1175
HSD-13HTF	13.5	475		3.8	245X2	ZG2"	340	1440	800	1175
HSD-15HTF	17	600	380V/50H	4.0	180X4	DN80	400	1500	1058	1368
HSD-20HTF	23	800		5.0	180X2+245X2		430	1660	1050	1422
HSD-25HTF	27	950		5.5	180X2+245X2		550	1800	1050	1422
HSD-30HTF	33	1250		7.5	245X4		650	1860	1140	1700
HSD-40HTF	45	1590		10.0	180X2+245X3	DN100	790	2020	1210	1718
HSD-50HTF	55	1940		13.5	450X6	DN125	870	2320	1336	2018
